Capacitor kit - SEGA Game Gear - SEGA Nomad - Atari Lynx - PCEngine GT

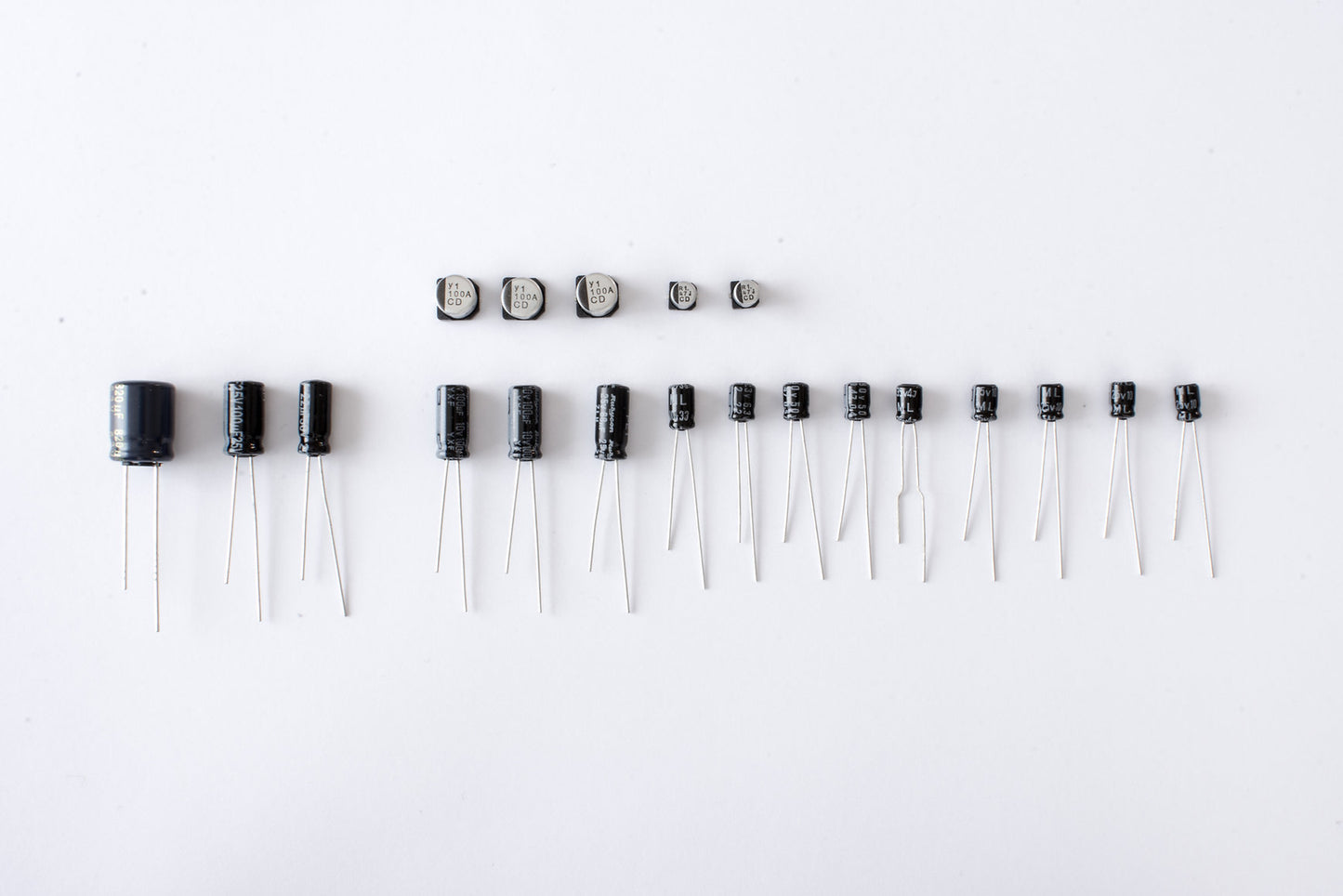

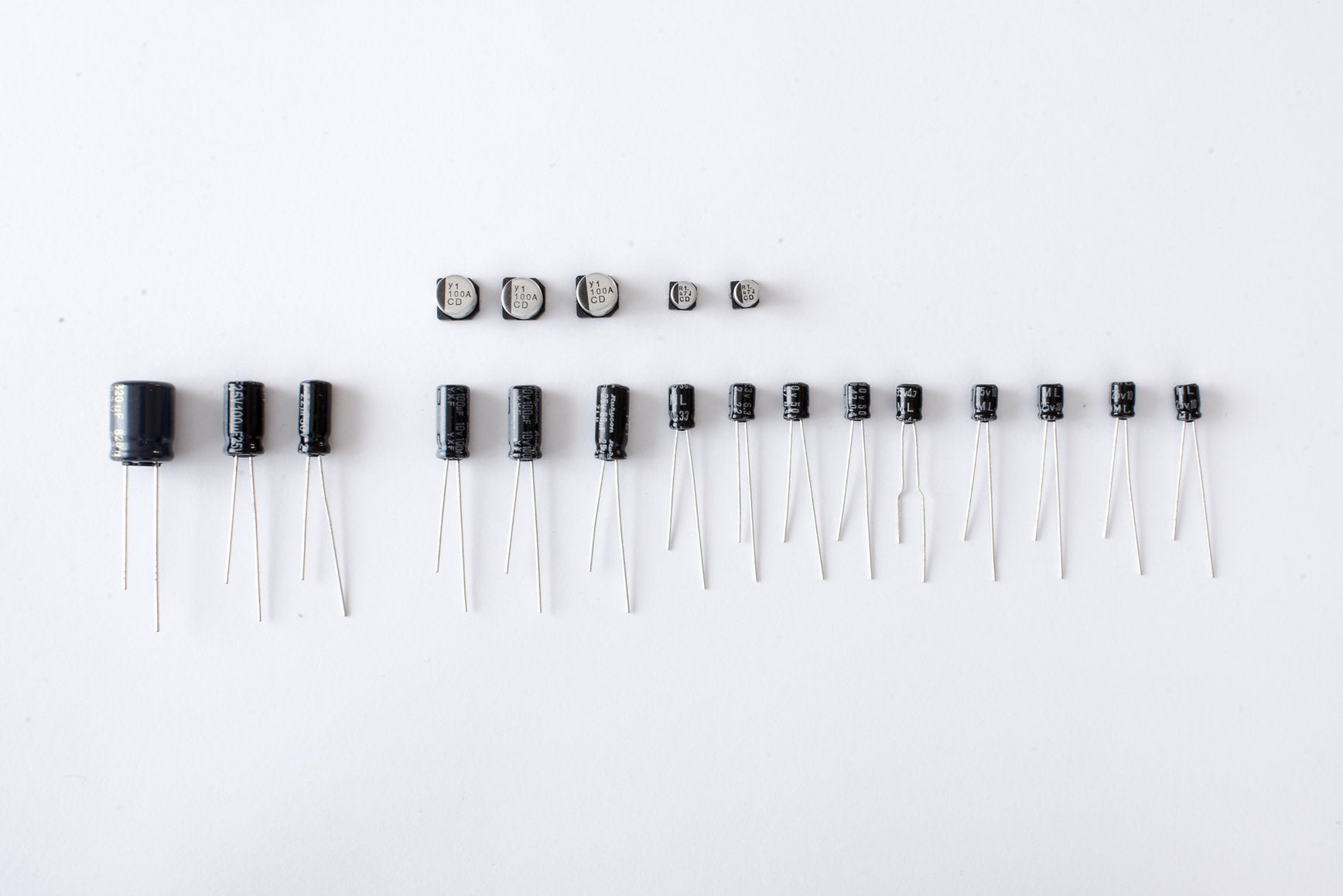

This kit includes all the capacitors needed to resolve the most common issues, like dim scree, no sound or no power.

The capacitors are selected carefully to match the original specifications, but also to fit nicely in the housing. Most of the capacitors are miniature models, which fit in the original spot. Other kits provide bulky capacitors of 5x11mm, which do not fit properly!

SEGA GameGear VA0/1

Mainboard:

• 2x Rubycon 100uF/10V – 5x11mm
• 1x Rubycon 68uF/25V – 5x11mm
• 1x Rubycon 33uF/10V – 4x7mm
• 1x Rubycon 22uF/6.3V – 4x5mm
• 1x Rubycon 4.7uF/35V – 4x5mm
• 2x Rubycon 0.47uF/50V – 4x5mm
• 4x Rubycon 10uF/25V – 4x5mm

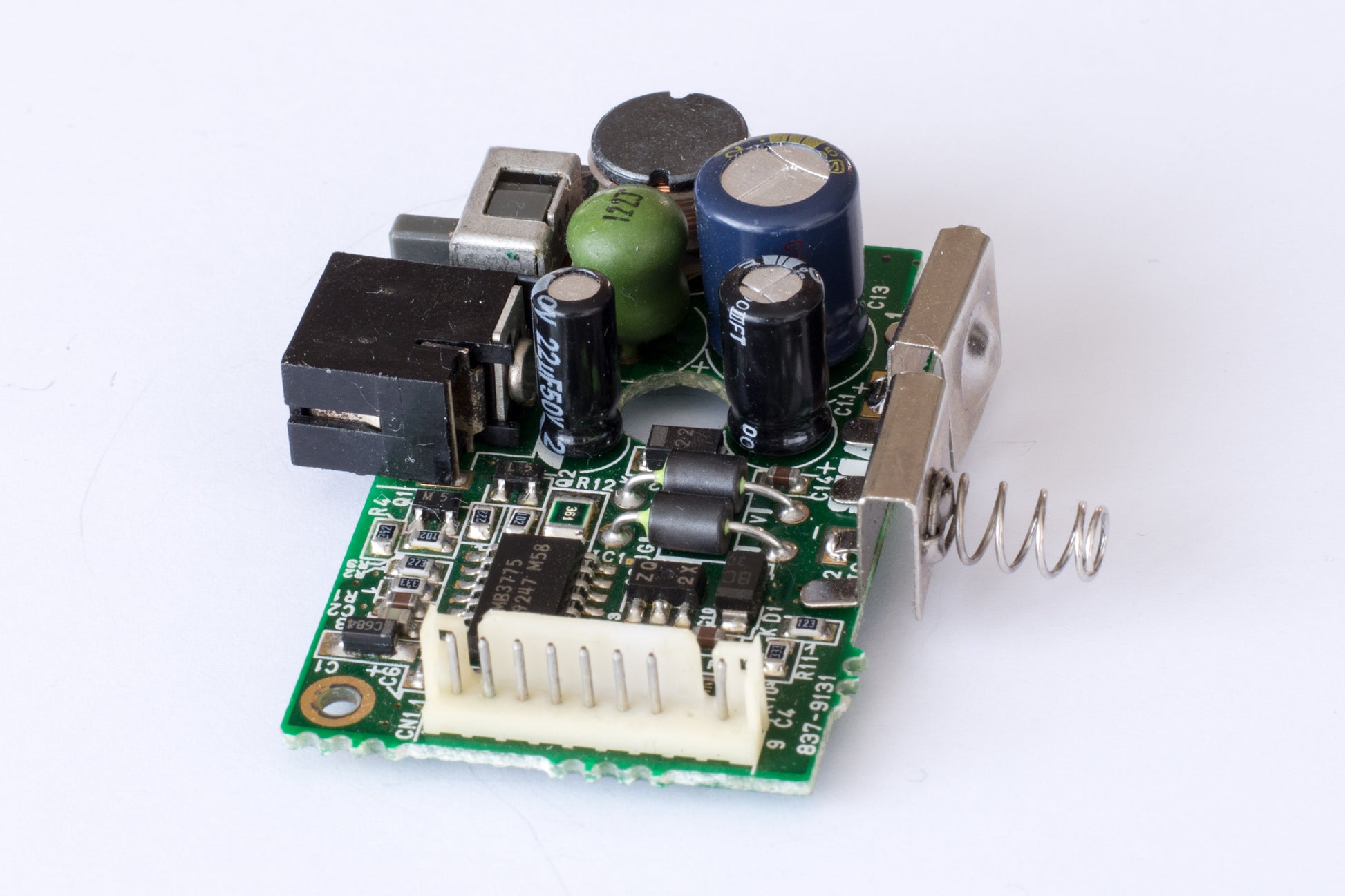

Power board:

• 1x Panasonc 820uF/6.3V – 10x12.5mm
• 1x Panasonic 100uF/25V – 6.3x11mm
• 1x Panasonic 22uF/50V – 5x11mm

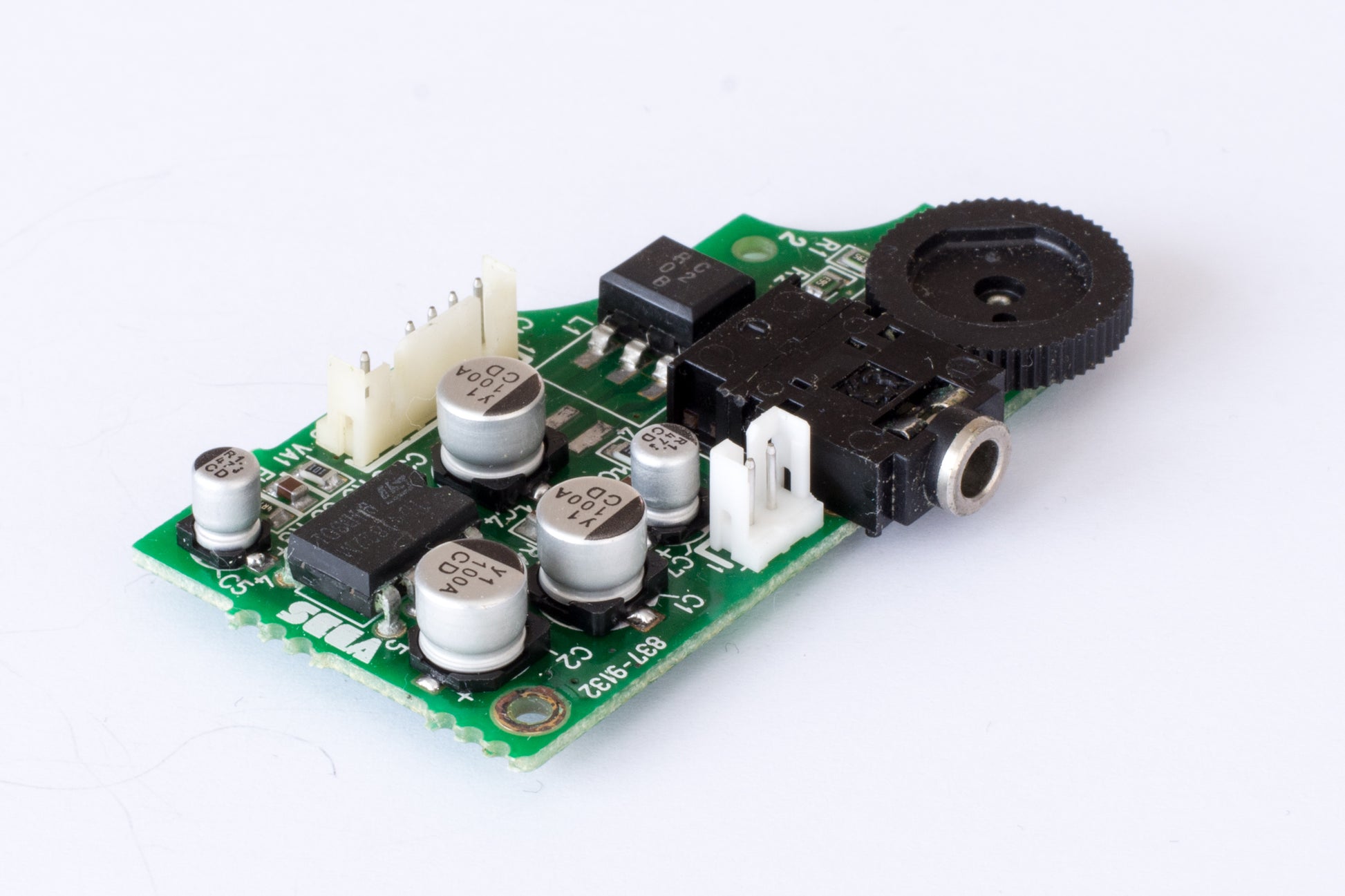

Sound board:

• 3x Panasonic 100uF/10V – 6.3x5.8mm SMD
• 2x Panasonic 47uF/6.3V – 4x5.8mm SMD

SEGA GameGear VA4

Mainboard:

• 1x Panasonic 100uF/10V – 6.3x5.8mm SMD
• 1x Panasonic 22uF/16V – 4x5.8mm SMD
• 1x Panasonic 10uF/35V – 4x5.8mm SMD
• 2x Rubycon 100uF/10V – 5x11mm
• 1x Rubycon 33uF/10V – 4x7mm
• 2x Rubycon 22uF/6.3V – 4x5mm
• 2x Rubycon 47uF/6.3V – 4x7mm
• 1x Rubycon 1uF/50V – 4x5mm
• 3x Rubycon 10uF/50V – 5x11mm

• 3x Rubycon 22uF/50V – 5x11mm

Power board:

• 1x Panasonc 820uF/6.3V – 10x12.5mm
• 1x Panasonic 100uF/25V – 6.3x11mm
• 1x Panasonic 22uF/50V – 5x11mm
• 1x Panasonic 10uF/35V – 4x5.8mm SMD

Sound board:

• 3x Panasonic 100uF/10V – 6.3x5.8mm SMD
• 2x Panasonic 47uF/6.3V – 4x5.8mm SMD

SEGA GameGear VA5/Majesco

Mainboard:

• 2x Rubycon 100uF/10V – 5x11mm
• 1x Rubycon 33uF/10V – 4x7mm
• 2x Rubycon 22uF/6.3V – 4x5mm
• 4x Rubycon 10uF/25V – 4x5mm
• 1x Rubycon 47uF/6.3V – 4x7mm
• 1x Rubycon 1uF/50V – 4x5mm
• 3x Rubycon 10uF/50V – 5x11mm


Power board:

• 1x Panasonc 820uF/6.3V – 10x12.5mm
• 1x Panasonic 100uF/25V – 6.3x11mm
• 1x Panasonic 22uF/50V – 5x11mm

Sound board:

• 3x Panasonic 100uF/10V – 6.3x5.8mm SMD
• 2x Panasonic 47uF/6.3V – 4x5.8mm SMD

All capacitors are high quality brands with a new date code!

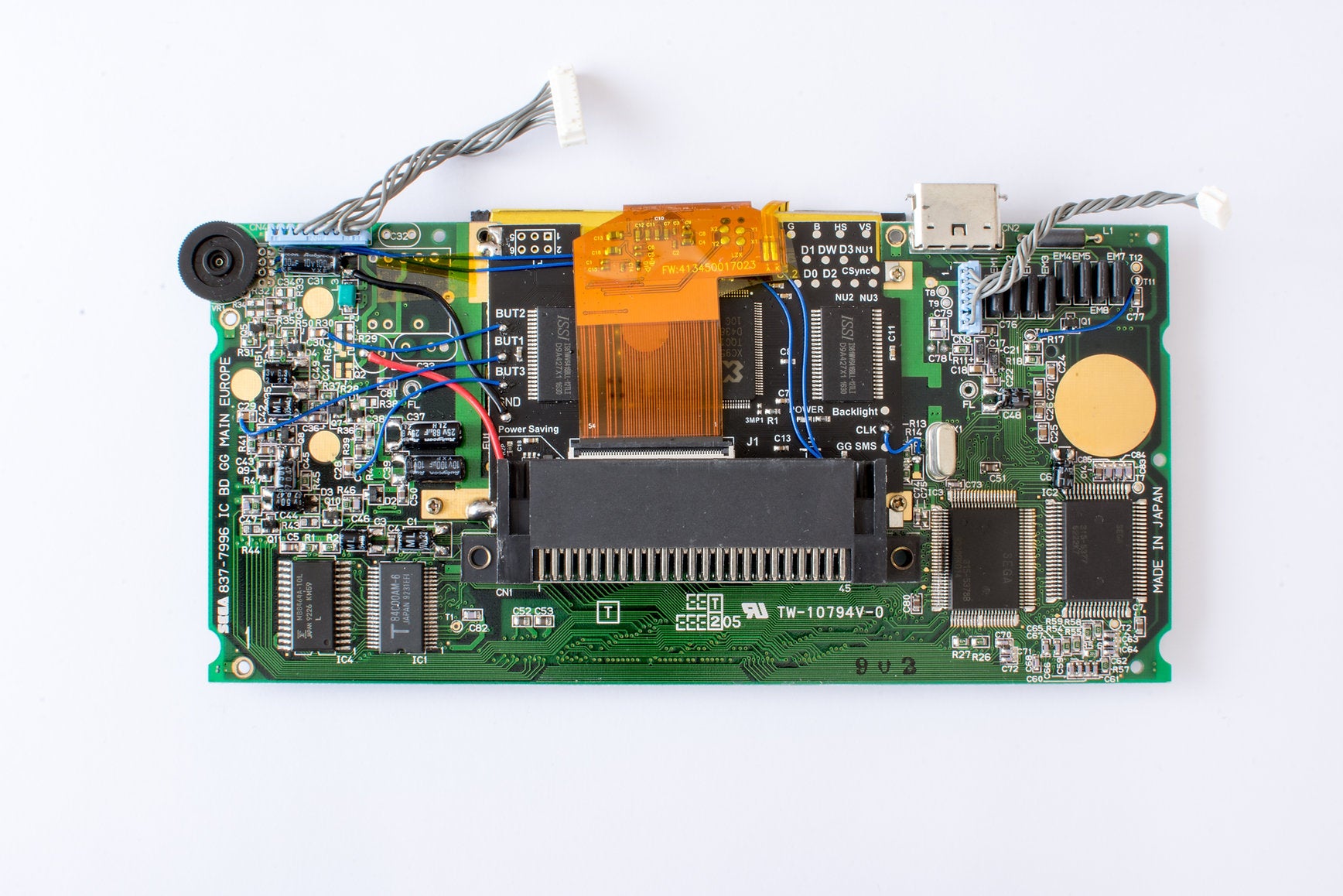

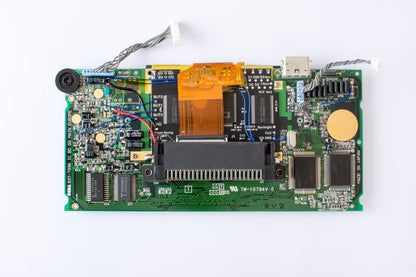

Pictures of the SEGA Game Gear board are for installation reference – these are not included!
