BennVenn GGHD GameGear HD IPS LCD Kit (rev3)

BennVenn GameGear IPS LCD kit for SEGA Game Gear (rev3)

HDMI-out plug is no longer included - can be bought here!

Features:

• High brightness 640x480 IPS LCD
• Frame locked to original frame rate - no screen tearing or lagging
• Low power consumption
• Multiple scan-line and scaling options selectable
• Easy to install using wire-free ribbon and mounting bracket

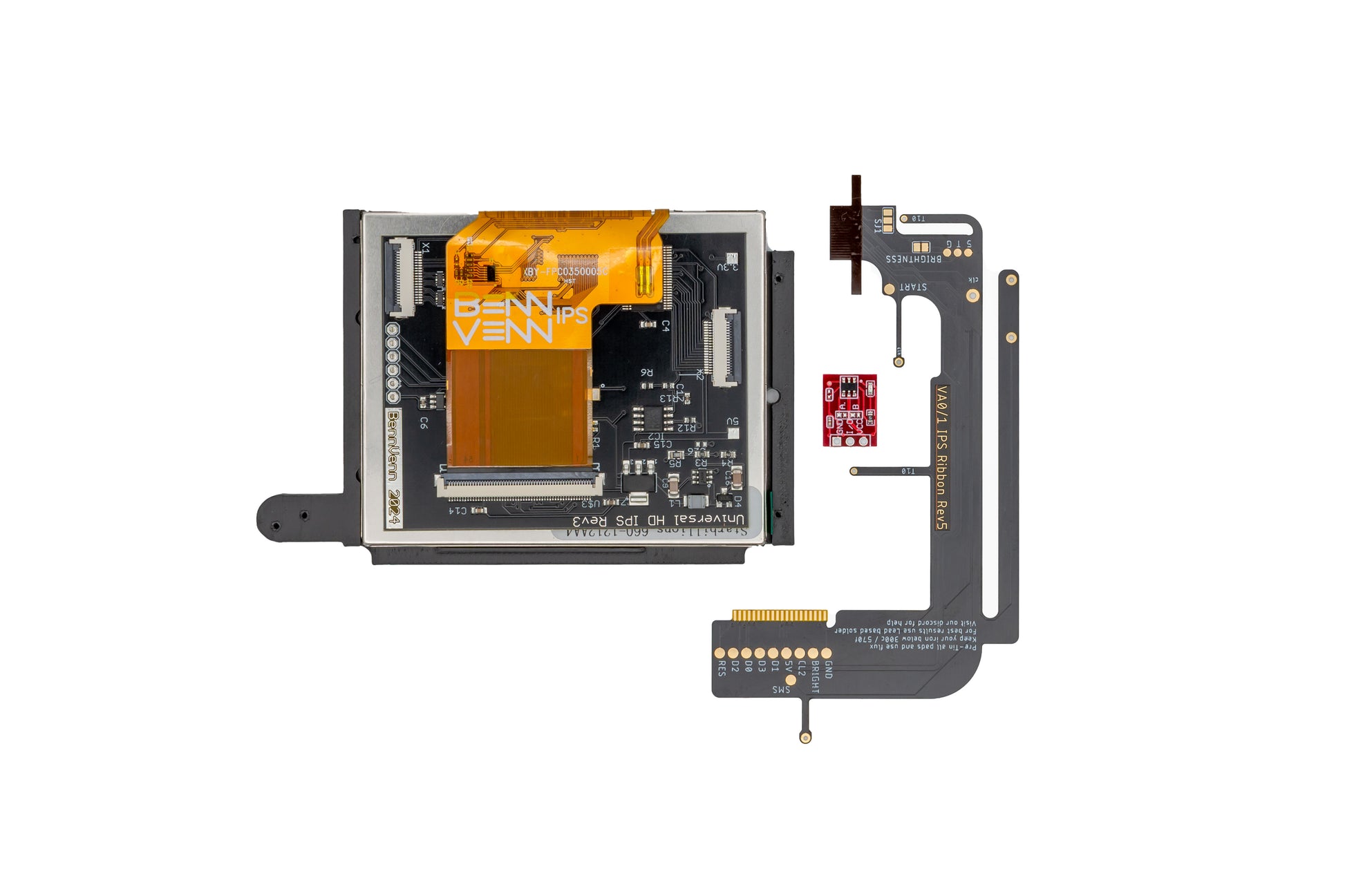

VA0/VA1 kit includes:

• LCD driver board
• 640x480 3.5" IPS LCD
• BennVenn mounting bracket
• Wirefree installation ribbon (VA0/VA1 model)
• Touch sensor

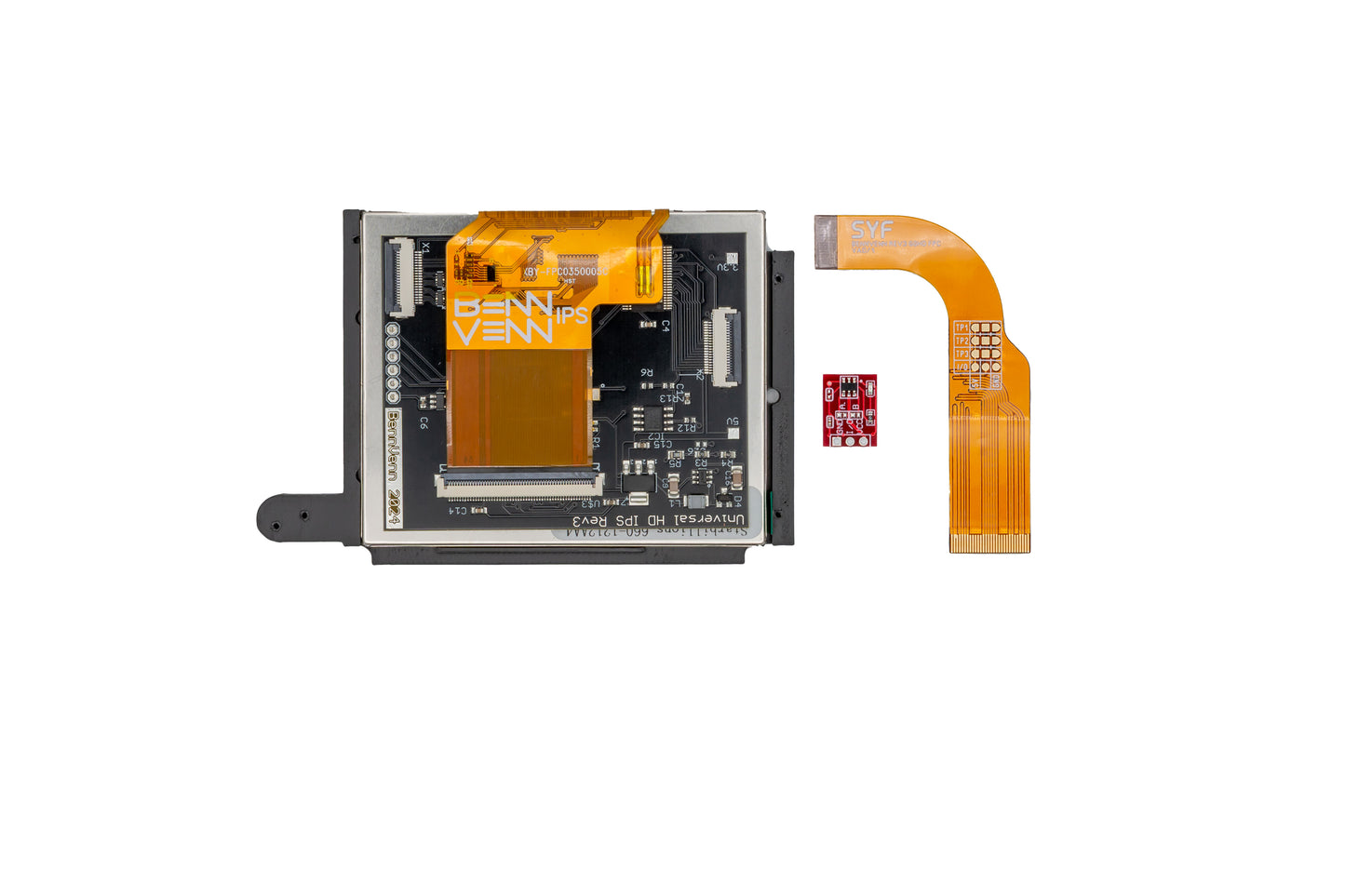

SYF kit is customized to fit with the SYF mainboard, following parts are included:

• LCD driver board
• 640x480 3.5" IPS LCD
• BennVenn mounting bracket
• FPC installation ribbon
• Touch sensor


We have noticed the BennVenn GGHD module needs a stronger clock signal. In case you have graphical glitches, it is recommended to replace R13 (dual-ASIC) or R24 (single-ASIC) with a 4.7k or 10k resistor. The resistors are included in with the kit!

The SYF ribbon has 4 option pads, TP1/2/3 are currently not in use. I/O can be used to connect the touch sensor.
